Description

LAB POINTS

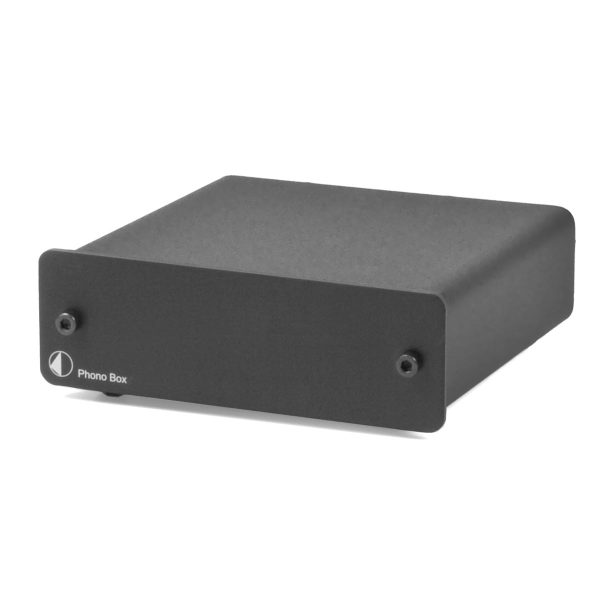

• audiophile-grade phono preamp

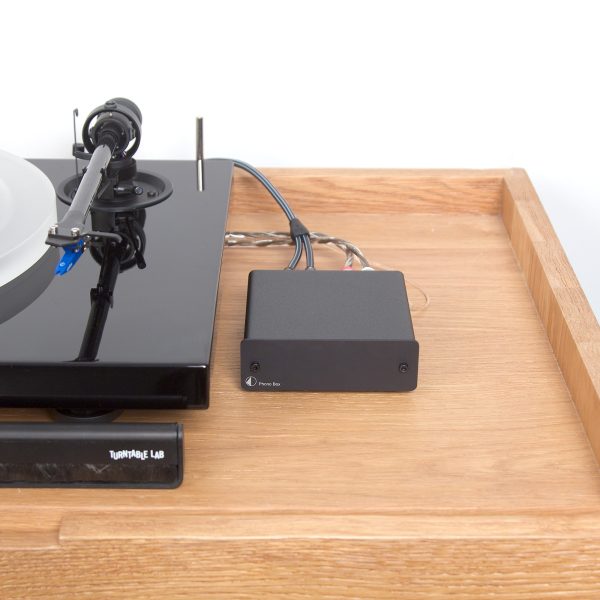

• allows you to plug a turntable directly into a stereo system, amplifier, computer, or any other device that takes line level input

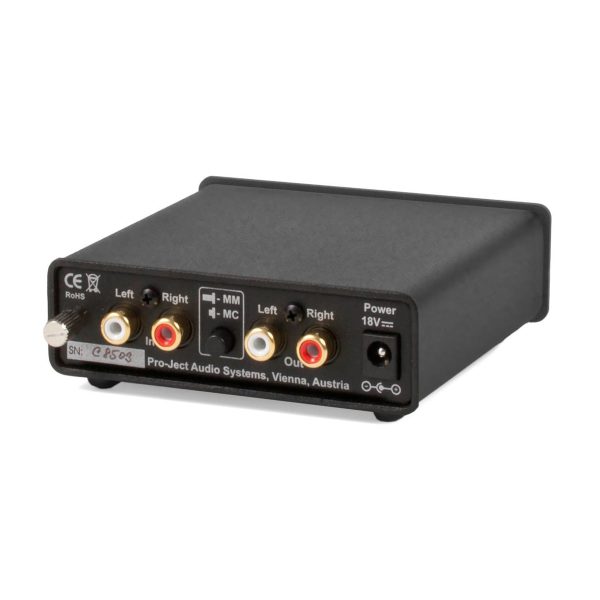

• gold plated RCA inputs and outputs
• high quality metal casing offers shielding from both vibration and electromagnetic interference
• new green DC power supply (extremely low idle power usage)
• switch for Moving Magnet (MM) and Moving Coil (MC) cartridges (most cartridges are MM)
• low noise, low distortion
• flat RIAA equalization curve with 60dB of gain (MC), 40 dB gain (MM)

• KEY FEATURES

  • Input Impedence MM: 47k ohms 120pf
  • Input Impedence MC: 100 ohms 120pF
  • Gain MM: 40dB
  • Output Voltage MM: 300mV 1 kHz or 3mV
  • Gain MC: 60 dB
  • Output Voltage MC: 200 mV 1 kHz or 0.3 mV
  • Noise MM: 86 dB (94 dB – A weighted)
  • Noise MC: 68 dB (75 dB – A weighted)
  • THD: MM 0.01% MC 0.05%
  • Max. Output: 9.5 V
  • RIAA EQ Curve Accuracy: 20 Hz – 20 kHz max 0.5 dB
  • Power Consumption: 18 V 80 mA DC
  • Power Supply: 18 V 500 mA DC
  • Dimensions (WHD): 4.1 x 1.4 x 4.1 in., 103 x 36 x 103 mm
  • Weight: 1.3 lbs., 570 g

  • COMES WITH

    • power supply
